• Catalog#
  • Description
  • UHPLC Column

    UHPLC Column (7)

    Gazelle UHPLC Column

    Orochem Technologies Gazelle UHPLC columns offer the chromatographer significantly increased throughput, low solvent consumption, inline process monitoring, and improved LC-MS results. Gazelle is designed by Orochem Technologies, especially to yield higher sensitivity and reproducibility in less run time. Orochem uses a proprietary silica type A manufacturing process that yields a narrow particle size and pore size distribution, which gives you consistent and reproducible results. The hydrophilic spherical surface is also stable over a wide pH range (2-8) to allow for excellent method flexibility. Applications are in clinical diagnostics labs, pharmaceutical discovery and PK/TK studies.

    Advantages:

    • Good Resolution
    • Faster Analysis
    • High Sensitivity
    • Low band spreading
    • Saves Solvent

    Features:

    • Surface Area: 327 m2/g
    • Pore Size: 13.5 nm
    • Pore Volume: 1.10 mL/g
    • pH Range: 2-8
    • Particle Size: 1.7µm
  • HPLC Column

    HPLC Column (545)

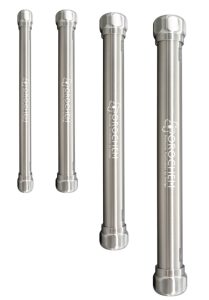

    HPLC Column

    Orochem Technologies provides a wide range of traditional liquid chromatography columns for analytical, preparative, and simulated moving bed chromatography (SMB) applications. Our HPLC and semi/prep columns are used globally in clinical diagnostics laboratories, industries (like pharmaceutical, biotech, food, nutraceutical), environmental and forensic testing laboratories.
    HPLC
    [accordions id="19337"]
  • Prep Chromatography

    Prep Chromatography (65)

    Prep Chromatography

    Orochem Technologies provides a wide range of reverse phase, normal phase and chiral prep/semi-prep HPLC columns. The particle size ranges from 5-50 µm, pore size ranges from 80-300 Å, and various dimensions.

    Reliasil

    Reliasil HPLC columns are designed for high efficiency (high plate count) and general utility. The proprietary silica gel manufacturing process yields a Gaussian particle size distribution, narrow pore-size distribution, and strong resistance to high pH. Phases: Silica, C1, C4, C8, C18, C30, NH2, CN, Phenyl, SCX, SAX, Diol, Polyamine, PFP pH Range: 2-8.5,

    Monitor

    Monitor is a top-quality phase, providing excellent stability and reproducibility, and minimal secondary interaction. Monitor is a perfect choice for reversed phase separations requiring thoroughly base-deactivated columns, and excels in challenging pharmaceutical and peptide separations. We developed Monitor expressly for the chromatography of difficult-to-separate samples. Phases: silica, C8, C18 pH Range: 2-8
  • Chiral Chromatography

    Chiral Chromatography (215)

    Chiral Chromatography

    Orochem Technologies offers a family of polysaccharide-based chiral stationary phases (CSPs) for liquid chromatography under the Epitomize brand name. The CSPs are available in particle sizes from 1.7 microns up to 300 microns, and columns can be ordered in many different configurations for use in UHPLC, HPLC, prep/semi-preparative LC, and simulated moving bed (SMB) chromatography. The Epitomize family of chiral stationary phases is composed of two series. Epitomize CSP-1 is based on derivatized polysaccharides that are coated onto modified silica gel.
    Epitomize CSP-2 is based on derivatized polysaccharides that are covalently-bound to silica gel. The best CSP for a given separation depends on several factors. For the racemate, these factors include structure, polarity, and the type and number of functional groups present. Although all of the CSPs are based on polysaccharides, each typically shows a different chiral response for the same racemate. This response can also change dramatically with the selection of mobile phase. Together, these CSPs permit the separation of a very broad range of racemates. Both the CSP-1 and CSP-2 Series can be used in normal phase, polar phase, reverse phase, and SFC. Standard modifiers are TEA, DEA, ethanolamine, TFA, acetic acid, etc. and the use level is typically around 0.1%. Each column is tested before packaging and a chromatogram with test conditions and column performance data is included.
    [accordions id="19338"]
  • Flash Chromatography System

    Flash Chromatography System (157)

    Flash Chromatography System

    Flash Chromatography is a rapid form of preparative column chromatography based on optimized pre-packed columns through which are pumped solvent at a high flow rate. It is a simple and economical approach to preparative LC. Orochem provides two types of flash columns. One type is using polypropylene. It is safer than glass columns, with no risk of breakage. Another type is the ISOSPEED flash column; the column is made of stainless steel, which is compatible with higher flow rate and pressure. All Orochem’s flash columns are packed with symmetrical sorbent compression to ensure improved separation and reproducibility.


    Orochem Technologies is partnering with Santai Science to offer SepaBean™ machine flash chromatography systems in the Midwest. Santai Science was established in 2004 and focused on developing and providing separation and purification systems. SepaBean™ does more than basic function of separation and purification, the flash chromatography system provides innovative approaches to technology learning and knowledge sharing.
    Model SepaBean™
    machine U
    SepaBean™
    machine T
    SepaBean™
    machine
    SepaBean™
    machine 2
    SepaBean™
    machine 2S
    SepaBean™
    machine L
    Flow range (mL/min) 1-100; 1-200 1-200 1-200 1-200 1-300 50-1000
    Max. pressure (psi) 100; 200 200 200 500 400 150
    Gradients 2 solvents, binary 4 solvents binary with combination of any 2 4 solvents binary 4 solvents binary with 3rdsolvents modifier 4 solvents binary with 3rdsolvents modifier 4 solvents binary with combination of any 2
    Sample loading capacity 10 mg – 33g 8g- 300 g
    Column sizes 4 -330 g, up to 3 kg with adapters 800g- 3kg
    [accordions id="19339"]
  • GC Column

    GC Column (1)

    ARRINNA GC Column

    Orochem offers a wide range of capillary GC columns for analytical labs. Orochem’s phases are high purity and low bleeding. GC columns for mass spectrometer are available.
    Our Column Selection Guide by Phases
    Phase   USP Orochem Agilent Restek
    100% Dimethyl polysiloxane Non-polar G1, G2, G38 AR-1 DB-1, HP-1 Rtx-1
    95% dimethyl/ 5% diphenyl polysiloxane Non-polar G27, G36 AR-5 DB-5, HP-5 Rtx-5
    Polyethylene glycol Polar G16, G20, G39 AR-WAX, AR-WAXQ CP-WAX 52 CB, HP-INNOWax Stabilwax
    Polyethylene glycol Polar G16, G20, G39 AR-FAMEWAX DB-FATWAX UI Rtx-Wax
    6% Cyanopropylphenol/ 94% dimethyl polysiloxane Mid-polarity G43 AR-624 DB-624 Rtx-624
    14% Cyanopropylphenol/ 86% dimethyl polysiloxane Mid-polarity G46 AR-1701MS VF-1701 Rtx-1701
    (6% cyanopropyl-phenyl)-methylpolysiloxane Low-mid polarity G43 AR-1301 DB-1301 Rxi-1301
    Nitroterephthalic aicd modified polyethylene glycol (PEG) High polarity, Very inert G53 AR-FFAP DB-FFAP
    Polyethylene glycol Polar G16 AR-CARBOWAX DB-CARBOWAX 20M
    35%-phenyl-methylpolysiloxane Mid-polarity, G42 AR-35 DB-35 Rtx-35
    50%-phenyl-methylpolysiloxane Mid-polarity G3 AR-50 HP-50+ Rxt-50
    By Applications
    General-purpose, aromatics and semivolatilesArinna-5
    Application Orochem
    General-purpose, hydrocarbons, pesticides, PCBs, and sulfur compounds, drug screening AR-1
    General-purpose, aromatics and semivolatiles AR-5
    Terpenes, FAME AR-WAX
    FAME AR-FAMEWAX
    Residual solvents, terpenes AR-624
    Pesticides, chemicals AR-1701MS
    Organic acids, free fatty acids (up to C24), phenols, acids dissolved in water AR-FFAP
    Alcohols, free acid, ether, glycol, solvents AR-CARBOWAX
    Free fatty acid and ethanol aqueous sample AR-WAXQ
    Pesticides and herbicides AR-35MS
    Chlorinated pesticides, herbicides and basic drugs AR-50MS
    Residual solvents, alcohols, oxygenates, volatile organic compounds AR-1301
Chiral HPLC Column File size: 1 MB Download
CSP-1A-5 micron column-Stilbene Oxide, trans File size: 112KB Download
CSP-1A-5 micron Column-Trogers Base File size: 114KB Download
CSP-1A-5micron Column-Benzoin File size: 110KB Download
CSP-1A-UHPLC Column-Benzoin File size: 112KB Download
CSP-1A-UHPLC Column-Flavanone File size: 112KB Download
CSP-1A-UHPLC Column-Mianserin File size: 112KB Download
CSP-1A-UHPLC Column-Stilbene Oxide, trans File size: 112KB Download
CSP-1A-UHPLC Column-Trogers Base File size: 136KB Download
CSP-1C-5 micron Column-Benzoin File size: 108KB Download
CSP-1C-5 micron Column-Bi-2-Naphthol File size: 132KB Download
CSP-1C-5 micron Column-Butanediol Dibenzoate File size: 111KB Download
CSP-1C-5 micron Column-Mianserin-HCl File size: 108KB Download
CSP-1C-5 micron Column-Warfarin File size: 111KB Download
CSP-1C-5 micron-Phenoxy-2-propanol, 1-_ File size: 111KB Download
CSP-1C-UHPLC Column-Stilbene Oxide, trans File size: 110KB Download
CSP-1J-5 micron Column-Naphthyl)ethanol_1-(1) File size: 110KB Download
CSP-1J-5 micron column-Stilbene Oxide, trans File size: 110KB Download
CSP-1J-UHPLC Column-Benzoin File size: 112KB Download
CSP-1J-UHPLC Column-Naphthyl)ethanol_1-(1- File size: 114KB Download
CSP-1J-UHPLC column-Naphthyl)ethanol_1-(2- File size: 113KB Download
CSP-1J-UHPLC Column-Stilbene Oxide, trans File size: 113KB Download
CSP-1K-5 micron Column-Flavanone File size: 119KB Download
CSP-1K-5 micron Column-Mianserin File size: 119KB Download
CSP-1Z-5 micron Column-Naphthyl)ethanol_1-(1 File size: 111KB Download
CSP-1Z-5 micron column-Phenoxy-2-propanol File size: 112KB Download
CSP-1Z-5 micron Column-Stilbene Oxide, trans File size: 119KB Download
CSP-1Z-5 micron Column-Tetrahydro-1-naphthol File size: 111KB Download
CSP-2C-5 micron Column-Bi-2-Naphthol File size: 130KB Download
CSP-2C-5 micron Column-Stilbene Oxide, trans File size: 112KB Download
CSP-2C-5 micron Column-Warfarin (2) File size: 112KB Download
CSP-2C-5 micron Column-Warfarin File size: 112KB Download
SFC-1Z-3 micron- Column-Napropamid File size: 123KB Download
SFC-CSP-1A-3 micron Column-Chlorpheniramine File size: 121KB Download
SFC-CSP-1A-3 micron Column-Phenoxy-2-propanol, 1- File size: 118KB Download
SFC-CSP-1A-3 micron Column-Propranolol File size: 120KB Download
SFC-CSP-1A-3 micron Column-Uniconazole File size: 170KB Download
SFC-CSP-1Z-3 micron Column-Acenaphthenol, 1- File size: 120KB Download
SFC-CSP-1Z-3 micron Column-Proglumide File size: 124KB Download
